Feature

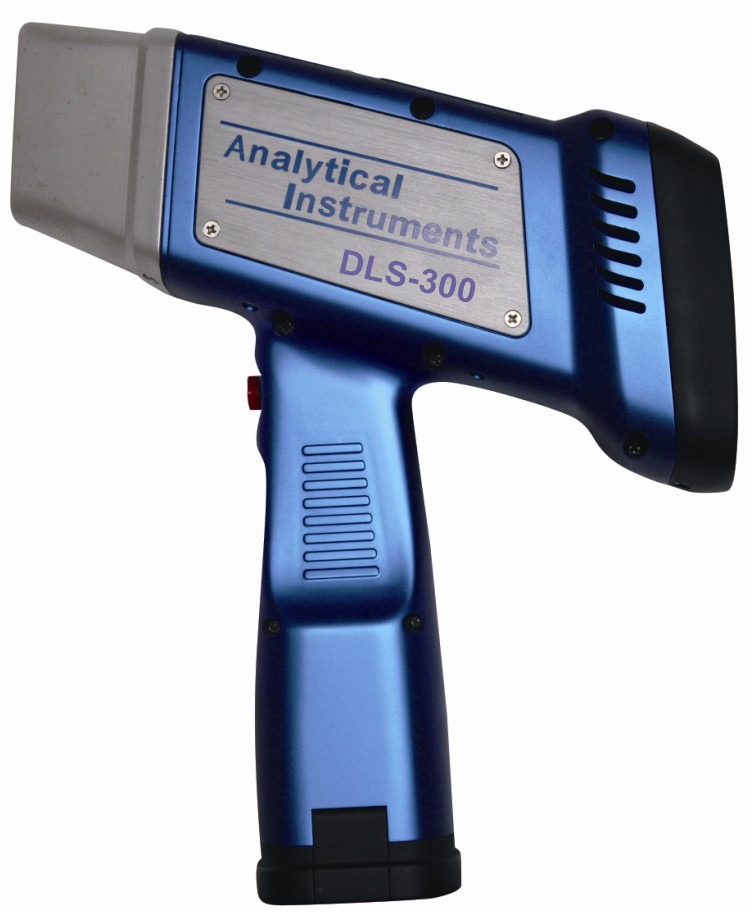

Dailyaid Handheld X-Ray Fluorescence Spectrometer DLS-300 is an energy-dispersive X-ray fluorescence spectrometer. It is a rapid and non-destructive analysis of elements in many kinds of samples conveniently and quickly (including Fe, Ni, Ti, Cu and other metal materials in the detection of elemental content can be achieved).
| DLS-300 Characteristics | |
| Determination of elements | Si-PIN Detector: Titanium - Uranium |
| Sample morphology | Solid, liquid, powder samples can be directly detected |
| Operating characteristics | One-touch design, user interface is simple |
| safety performance | Multi-layer protection, to avoid X-ray radiation damage to the human body |
Specifications
DLS-300 Handheld X-Ray Fluorescence Spectrometer main technical indicators include: detectors, integrated X-ray generator.
1) Detector
DLS-300 selected Si-PIN detector, the user can according to their actual needs to buy.
| Detector | |
| Type |
Si-PIN Detector |
| Typical resolution | 145ev |
| Output count rate | 30kcps |
| Peak to back ratio | >6200 |
| Integrated X-ray generator | |
| Input voltage | 9—11VDC |
| Input Current | 0.5A |
| The output voltage | 50Kv，200uA |
| Maximum power | 4W |
| stability | 8h0.2% |
Applications
For metal alloy analysis, scrap metal recycling, alloy material identification (PMI), production control and other fields.
Dimensions
Size: 260mm*95mm*280mm
Weight: 1.8kg
