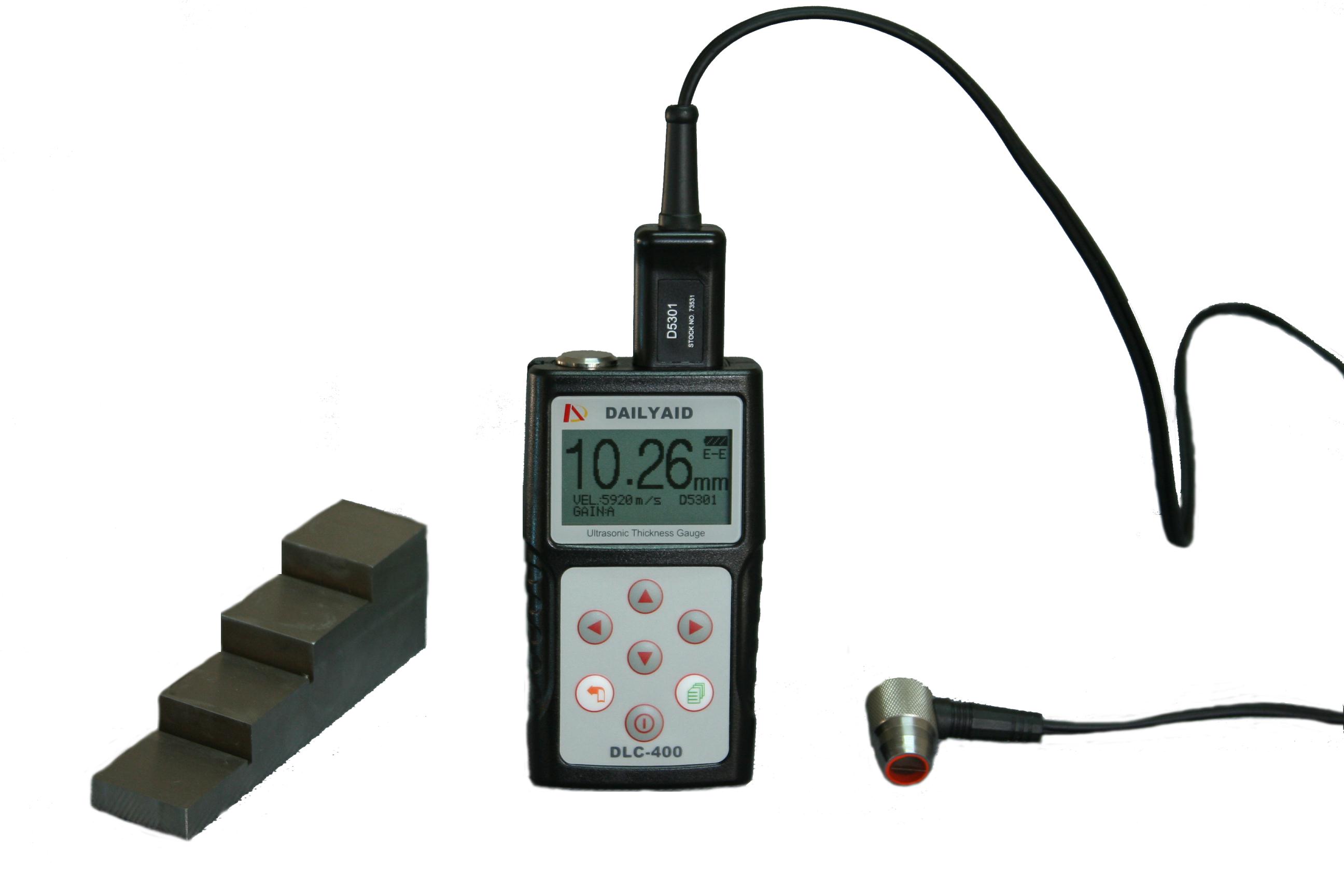

Ultrasonic Thickness Gauge DLC-400 Standard/Intelligent

Catalog

Manual

Video

Feature
◎Can measure the thickness of the workpiece through coating (echo - echo measurement mode)
◎Automatic probe zero calibration when power on
◎Automatic probe recognizes, and a variety of probes are available
◎Meet various measurement needs via 3 kinds of measuring methods, Transmission-echo, echo-echo, and fast scan mode
◎Large capacity of 5000 sets data storage (applied to DLC-400 Intelligent)
◎9 commonly used materials’ velocity value is prestored. Users can customize and store the value of the velocity.
◎USB data interface
◎Chinese & English operation interface



Standard Configuration
◎One set of Main Unit
◎One set of DL01 Probe
◎One bottle of 75mg Couplant
◎Two sets of AAA Battery
◎One set of Attached Documents
◎Software and Cable (DLC-400 Intelligent)
◎One set of Instrument Case

Technical Specification
Performance Parameter Standard Intelligent
Measuring Range Normal Mode: 1.2-300mm (different probes determine different measuring ranges)  Through the Coating: 3-25mm √ √
Indication Accuracy 0.01mm √ √
Zero Calibration Automatic probe zero calibration when power on √ √
Probe recognition Automatic probe recognition √ √
Display Information Measured value, velocity value, probe model, meas. mode, measurement symbol, battery power √ √
Indication Unit Metric / Imperial √ √
Velocity Range 9 commonly used materials’ velocity value is prestored, and can be set between 1000m/s and 9999m/s. √ √
Velocity Meas. Measure the sound velocity of the thickness-known materials √ √
Measuring Mode Transmission-Echo Mode Standard Meas.: Meet common testing requirements √ √
Min Meas.: Meet the needs of curved surface measurement or the measurement to select the minimum value. √ √
Differential Meas.: Display the difference between the actual measured value and the set standard value.   √
Average Meas.: Provide the average measured value between 2-9 points.   √
Meas. of upper and lower limits: Limit Alarm.   √
Echo-Echo Mode Measuring the thickness of the substrate through the coating √ √
Fast Scan Mode Suitable for high temperature or there’s need to improve measurement speed, 10 measurements per second, and can display the maximum and minimum value in measurement simultaneously. √ √
Data Storage Can store 5000 sets measured data.   √
Output Interface USB   √
Shutdown Choice Can choose 2 or 5 minutes to shut down automatically or no automatic shutdown. √ √
Dimension 115x64x27mm √ √
Weight 220(g) √ √
Operation Temp. -20℃-50℃ √ √
Battery Two AAA alkaline batteries √ √
Operation Hours 50 hours (without backlight) √ √
Monitor 128x64 with LED backlight √ √
